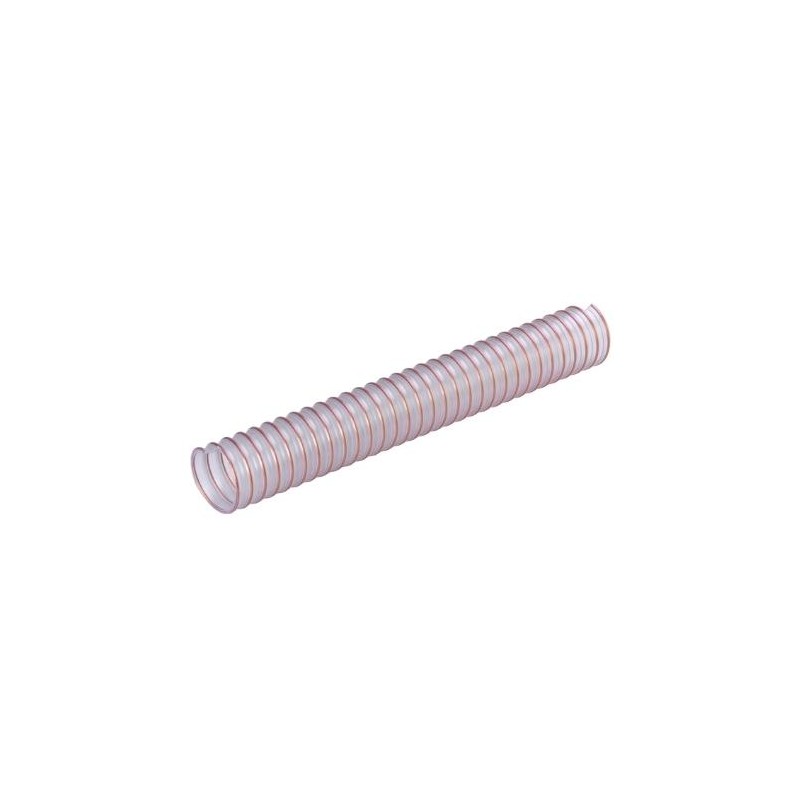

160 suction hose VULCANO 15 EST

160 VULCANO 15 EST hose is made of transparent ester-based polyurethane and reinforced with a TPU-coated copper-coloured steel helix. The inner surface is smooth, while the outer surface is corrugated. The smooth inner surface ensures good material flow, while the minimum wall thickness between helix turns is 1.5 mm.

The hose offers greater abrasion resistance than conventional rubber or PVC hoses and is designed for a long service life. It provides good resistance to mineral oils and UV radiation, as well as excellent resistance to ozone and weather conditions. The operating temperature ranges from -40°C to +90°C, with short-term exposure up to +125°C.

Key features:

• Smooth inner and corrugated outer surface
• Greater abrasion resistance than conventional rubber or PVC hoses
• Resistant to mineral oils, UV radiation, ozone and weather conditions
• Minimum wall thickness between helix turns: 1.5 mm
• Reinforcement: TPU-coated copper-coloured steel helix
• Long service life

Applications:

• suction of granules and chips
• granule conveying systems and plastics industry
• industrial vacuum cleaners
• conveying gravel, stones and aggregates

We can make this hose with crimped fittings in 15–30 minutes – learn more about hose assembly and crimping.
