M020617 VUL-PU-HDS-15-040
040 suction hose VULCANO 15 EST
040 VULCANO 15 EST suction hose for pneumatic conveying – a durable polyurethane hose for suction and conveying of granules, chips, gravel, stones and other abrasive materials.
€16.57
/ M
Tax excluded
Delivery within 2-4 business days

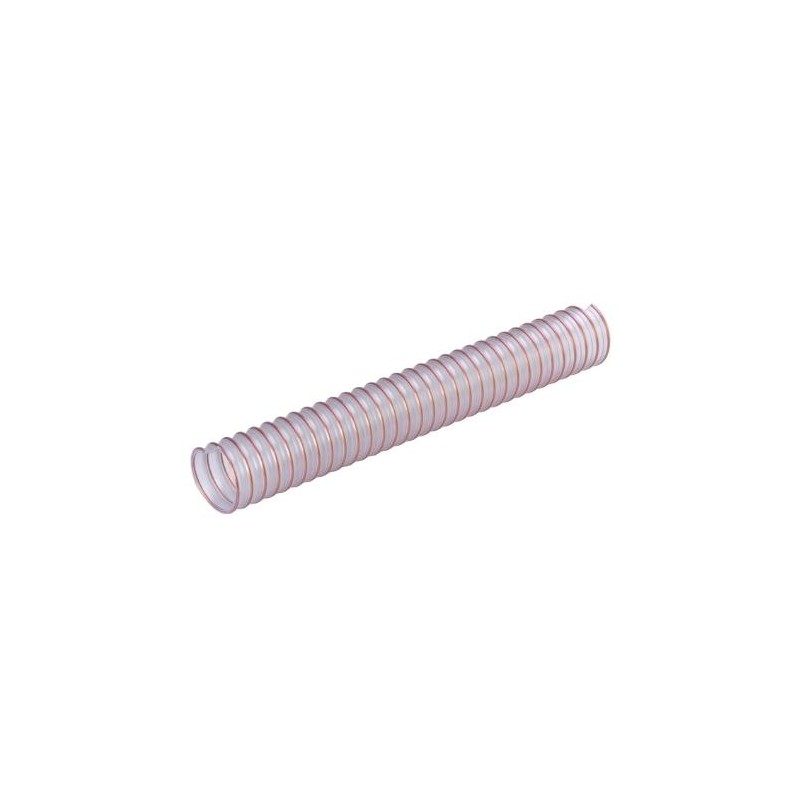

The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The 040 VULCANO 15 EST suction hose is made of transparent ester-based polyurethane and reinforced with a TPU-coated steel helix. Its smooth inner surface provides efficient material flow, while the 1.5 mm wall thickness between helix turns increases abrasion resistance.
The hose is resistant to mineral oils, UV radiation, ozone and weather conditions. Its operating temperature ranges from -40°C to +90°C, with short-term exposure up to +125°C.
Key features:
- Inner diameter: 40 mm
- Temperature range: -40°C to +90°C, short-term up to +125°C
- Vacuum rating: 95%
- Minimum wall thickness between helix turns: 1.5 mm
- Reinforcement: TPU-coated steel helix
Applications:
- suction of granules and chips
- plastics industry conveying systems
- industrial vacuum cleaners
- conveying gravel, stones and aggregates
Technical dataPrint
Technical data
| Application | Suction |
| Inner diameter, mm | 40 |
| Min. temperature, C | -40 |
| Max. temperature, C | 90 |
| Bending radius, mm | 50 |
| Vacuum, % | 95 |
| Coil length, m | 20 |
| Weight | 0.56 kg |
