M020622 VUL-PU-HDS-15-203

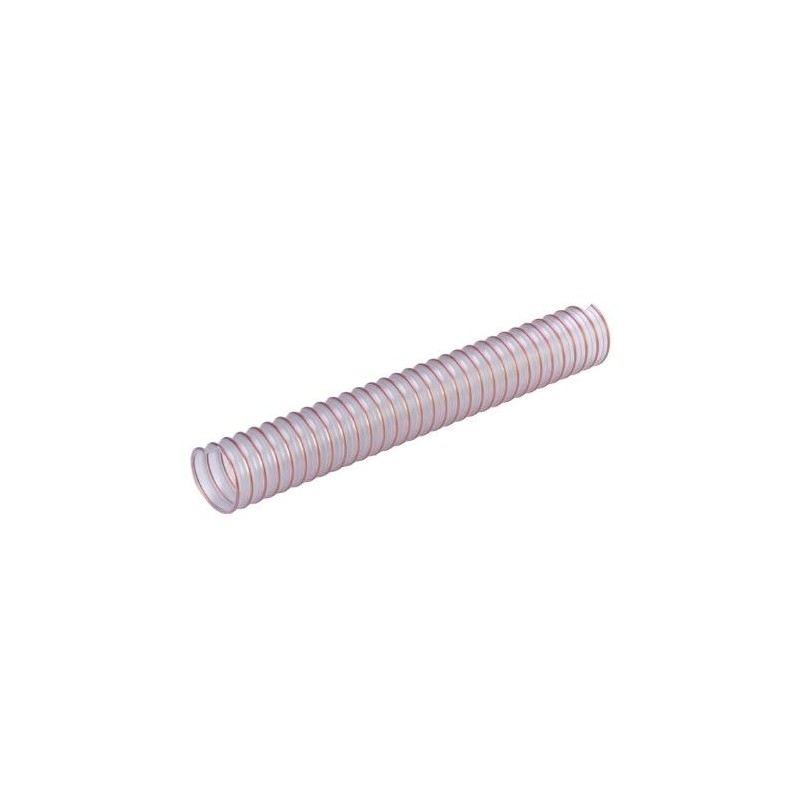

203 suction hose VULCANO 15 EST
203 VULCANO 15 EST suction hose for pneumatic conveying – a durable polyurethane hose designed for suction and conveying of granules, chips, gravel, stones and other abrasive materials.
€82.69
/ M
Tax excluded
Delivery within 2-4 business days
The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The 203 VULCANO 15 EST hose is made of transparent ester-based polyurethane and reinforced with a TPU-coated copper-coloured steel helix. The inner surface is smooth, while the outer surface is corrugated. The smooth inner surface ensures good material flow, while the minimum wall thickness between helix turns is 1.5 mm.
The hose offers greater abrasion resistance than conventional rubber or PVC hoses and is designed for a long service life. It provides good resistance to mineral oils and UV radiation, as well as excellent resistance to ozone and weather conditions. The operating temperature ranges from -40°C to +90°C, with short-term exposure up to +125°C.
Key features:
- Smooth inner surface for efficient material flow
- Greater abrasion resistance than conventional rubber or PVC hoses
- Resistant to mineral oils, UV radiation, ozone and weather conditions
- Minimum wall thickness between helix turns: 1.5 mm
- Reinforcement: TPU-coated copper-coloured steel helix
- Long service life
Applications:
- suction of granules and chips
- granule conveying systems and plastics industry
- industrial vacuum cleaners
- conveying gravel, stones and aggregates
Technical dataPrint
Technical data
| Application | Suction |
| Inner diameter, mm | 203 |
| Min. temperature, C | -40 |
| Max. temperature, C | 90 |
| Bending radius, mm | 230 |
| Vacuum, % | 12 |
| Coil length, m | 15 |
| Weight | 3.18 kg |
