M070630 VUL-PU-HDS-15-060
060 suction hose VULCANO 15 EST
060 VULCANO 15 EST suction hose for pneumatic conveying – a durable polyurethane hose for suction and conveying of granules, chips, gravel, stones and other abrasive materials.
€23.87
/ M
Tax excluded
Delivery within 2-4 business days

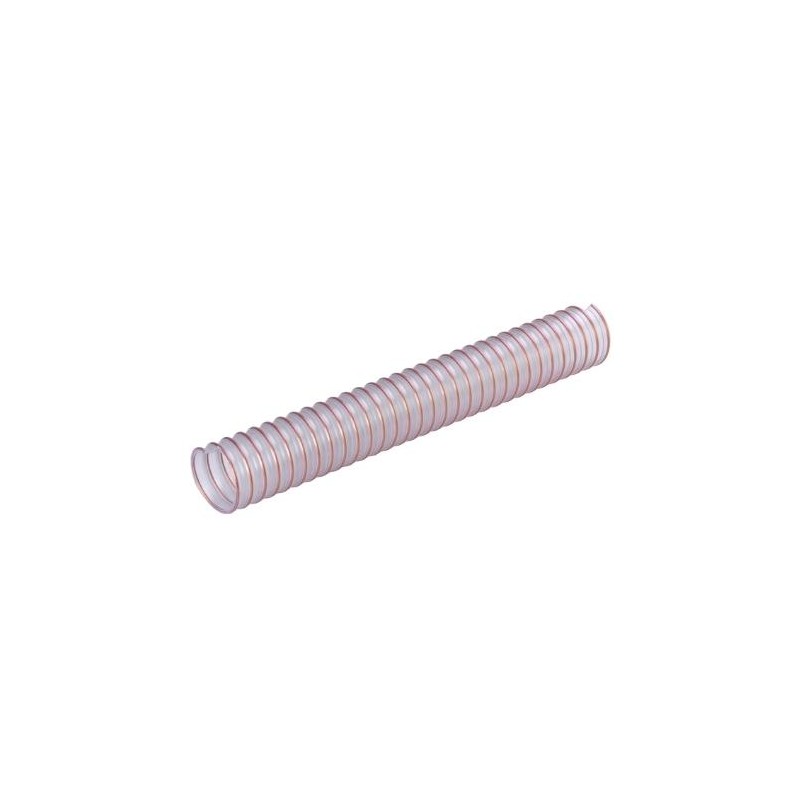

The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The 060 VULCANO 15 EST hose is made of transparent ester-based polyurethane and reinforced with a TPU-coated steel helix. Its smooth inner surface supports efficient material flow, while the 1.5 mm wall thickness between helix turns provides greater abrasion resistance than conventional rubber or PVC hoses.
The hose is resistant to mineral oils, UV radiation, ozone and weather conditions. Its operating temperature ranges from -40°C to +90°C, with short-term exposure up to +125°C.
Key features:
- Inner diameter: 60 mm
- Temperature range: -40°C to +90°C, short-term up to +125°C
- Vacuum rating: 85%
- Minimum wall thickness between helix turns: 1.5 mm
- Bending radius: 70 mm
Applications:
- suction of granules and chips
- plastics industry conveying systems
- industrial vacuum cleaners
- conveying gravel, stones and aggregates
Technical dataPrint
Technical data
| Application | Suction |
| Inner diameter, mm | 60 |
| Min. temperature, C | -40 |
| Max. temperature, C | 90 |
| Bending radius, mm | 70 |
| Vacuum, % | 85 |
| Coil length, m | 20 |
| Weight | 0.82 kg |
