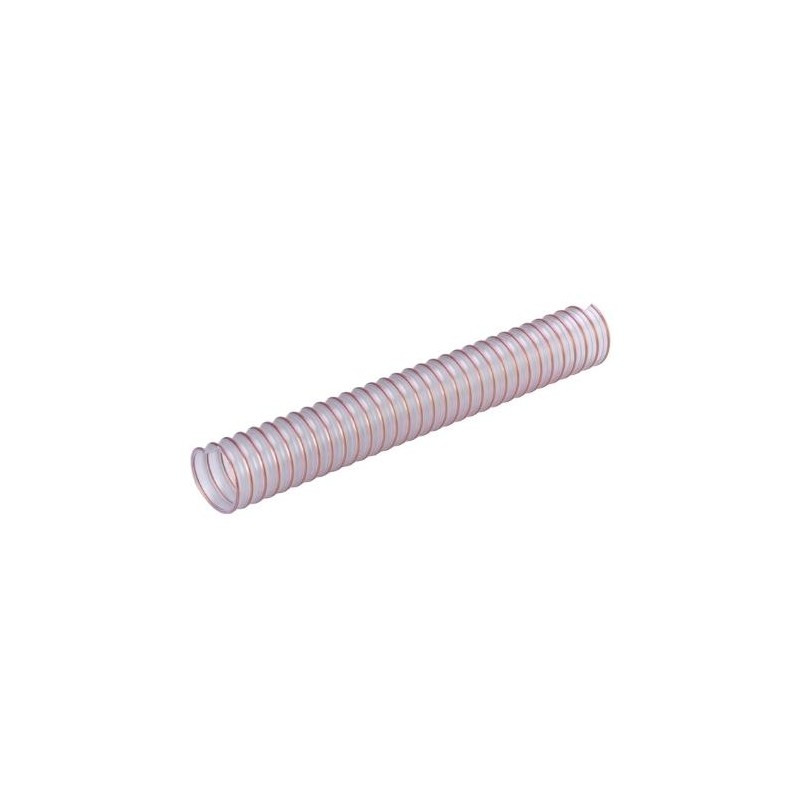

102 suction hose VULCANO 15 EST

The 102 VULCANO 15 EST hose is made of transparent ester-based polyurethane and reinforced with a TPU-coated copper-coloured steel helix. The inner surface is smooth, while the outer surface is corrugated. The smooth inner surface ensures good material flow, while the minimum wall thickness between helix turns is 1.5 mm.

The hose offers greater abrasion resistance than conventional rubber or PVC hoses and is designed for a long service life. It is resistant to mineral oils, UV radiation, ozone and weather conditions. The operating temperature ranges from -40°C to +90°C, with short-term exposure up to +125°C.

Key features:

• Inner diameter: 102 mm
• Inner surface: transparent, smooth ester-based polyurethane
• Outer surface: transparent, corrugated polyurethane
• Temperature range: -40°C to +90°C, short-term up to +125°C
• Vacuum rating: 35%
• Bending radius: 120 mm
• Minimum wall thickness between helix turns: 1.5 mm
• Reinforcement: TPU-coated copper-coloured steel helix

Applications:

• suction of granules and chips
• granule conveying systems and plastics industry
• industrial vacuum cleaners
• conveying gravel, stones and aggregates
