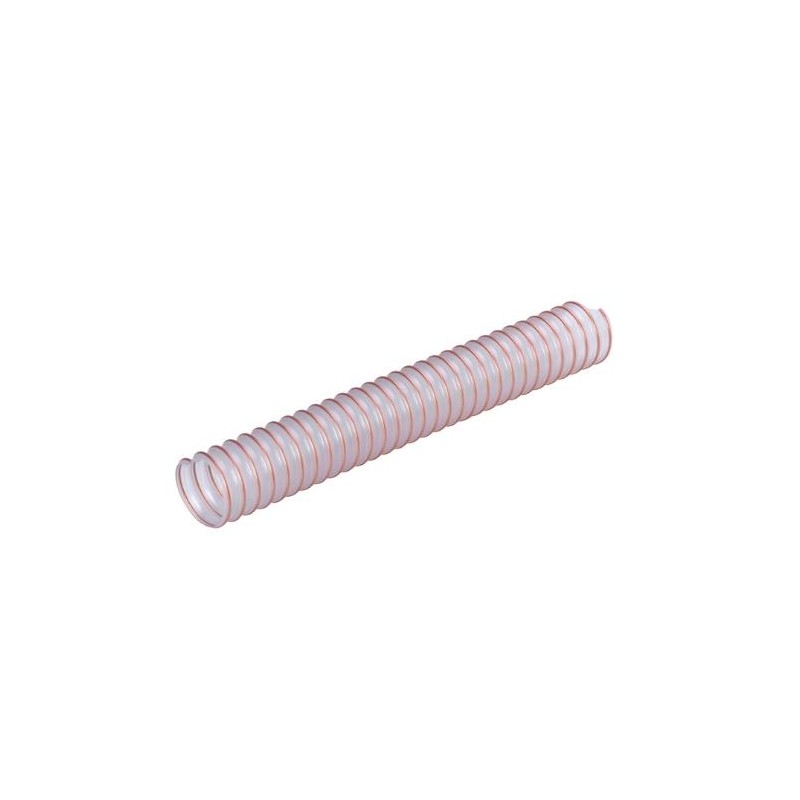

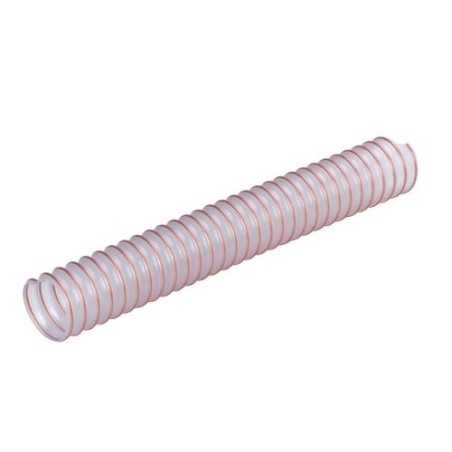

406 suction hose VULCANO PU H 09

406 suction hose VULCANO PU H 09 is used for pneumatic conveying in the wood, ceramics and chemical industries and other manufacturing sectors. It is suitable for very demanding working conditions.

The inner layer is made of transparent, smooth ester-based polyurethane and the outer layer of transparent, corrugated ester-based polyurethane. The construction is reinforced with a polyurethane-coated steel helix; wall thickness between the coils is 0.9 mm.

The smooth inner surface ensures optimal flow characteristics. The hose resists weathering, many chemicals and oils. When the helix is grounded, the hose becomes conductive (R < 10² Ω/m); an antistatic version can be produced.

Key features:

• Inner layer: transparent, smooth ester-based polyurethane
• Outer layer: transparent, corrugated ester-based polyurethane
• Reinforcement: polyurethane-coated steel helix
• Wall thickness between coils: 0.9 mm
• Manufacturer: IPL (Italy)

Application:

• pneumatic conveying
• wood industry
• ceramics industry
• chemical industry

We can make this hose with crimped fittings in 15–30 minutes – learn more about hose assembly and crimping.
