M065968 VUL-PUH-130

130 suction hose VULCANO PU H 09

Name: 130 suction hose VULCANO PU H 09
Brand: UAB Hidrobalt
SKU: M065968
Price: 56.97 EUR
Availability: InStock

130 VULCANO PU H 09 suction hose for pneumatic conveying – an IPL polyester-based polyurethane hose with a smooth bore and a polyurethane-coated steel helix, designed for the woodworking, ceramics, chemical and other manufacturing industries.

€56.97 / M

Tax excluded

In stock Availability

Add compare Remove compare

Add in wishlist Added to wishlist

In stock

Kaunas

Ateities pl. 28A, 52181

Map

Delivery within 2-4 business days

The product image is for illustrative purposes only and may not be an accurate representation of the product.

Description

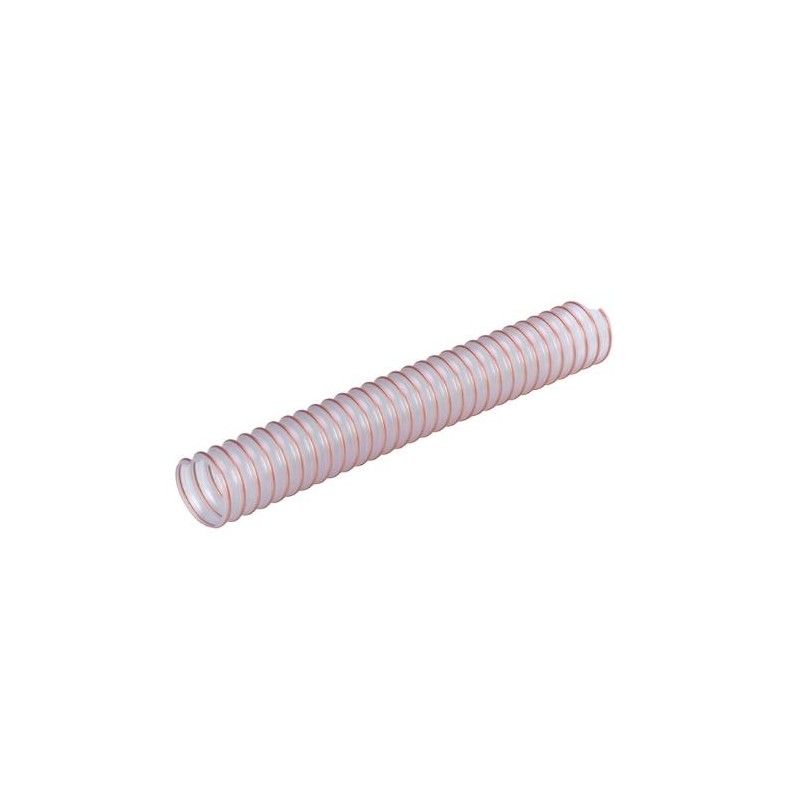

The 130 VULCANO PU H 09 hose is made of transparent polyester-based polyurethane and reinforced with a polyurethane-coated steel helix. The inner surface is smooth, while the outer surface is corrugated. The wall thickness between the helix turns is 0.9 mm. The smooth bore ensures optimum flow characteristics when transporting materials in pneumatic conveying systems.

The hose is used for pneumatic conveying in the woodworking, ceramics and chemical industries, as well as other manufacturing sectors. It is resistant to weathering, many chemicals and oils, and is suitable for particularly demanding operating conditions. When the steel helix is earthed, the electrical resistance is R < 10² Ω/m. An antistatic version can also be manufactured. The manufacturer is IPL (Italy).

Key features:

Inner diameter: 130 mm
Operating temperature: −40 °C to +90 °C
Coil length: 10 m

Applications:

pneumatic conveying in the woodworking industry
pneumatic conveying systems in the ceramics industry
material conveying in the chemical industry
pneumatic conveying in other manufacturing sectors under particularly demanding conditions
