M006710 BITUM-102-10-THO

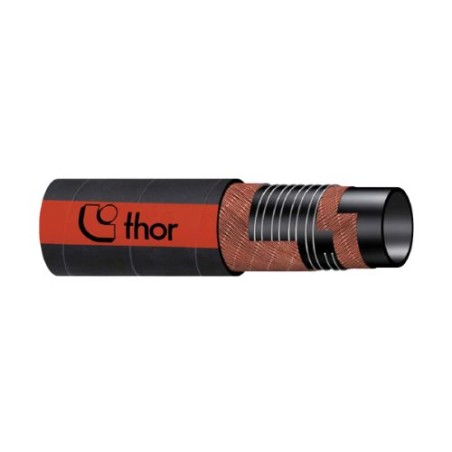

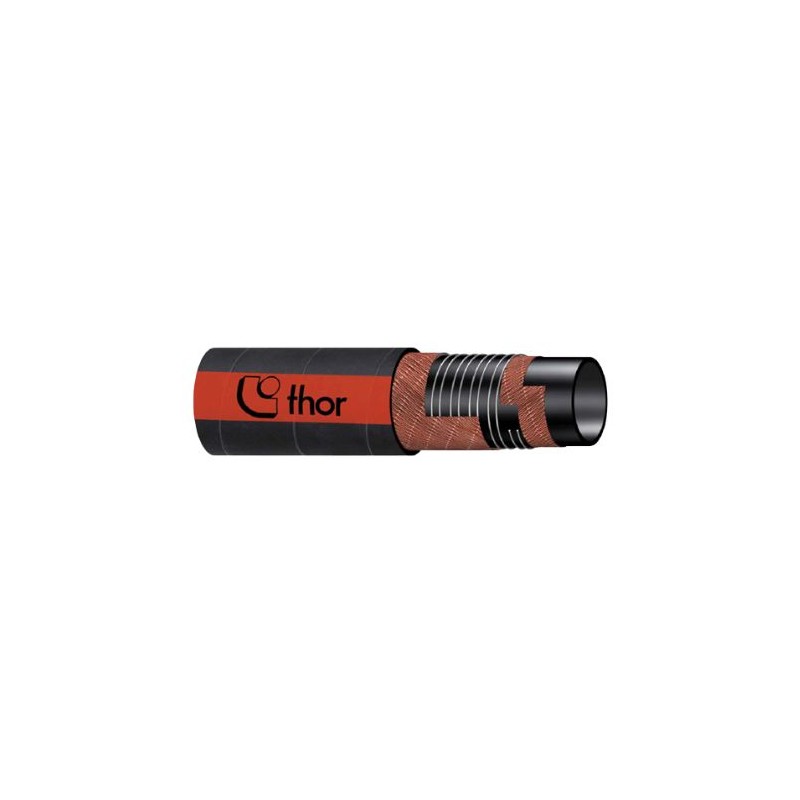

102x124 bitumen hose BITUME/01KSPL
102×124 bitumen hose BITUME/01KSPL – a robust hose designed for the suction and transfer of hot bitumen, oil and other high-temperature petroleum products. Resistant to oil, ozone and weather conditions.
€103.00
/ M
Tax excluded
Delivery within 2-4 business days
The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The 102×124 BITUME/01KSPL suction hose is designed for the suction and transfer of hot bitumen, oil and other high-temperature petroleum products. Its 102 mm inner diameter makes it suitable for high-capacity bitumen transfer and industrial systems.
The inner tube is made of smooth black synthetic rubber. Textile reinforcement and a steel helix strengthen the construction, help the hose maintain its shape during suction operations and enable operation at vacuum levels up to 90%.
The smooth synthetic rubber outer cover is resistant to oil, ozone and weather conditions. The hose can operate at temperatures from -20°C to +185°C, making it suitable for demanding hot-bitumen and hot-oil transfer applications.
Key features:
- Vacuum rating: 90%
- Reinforcement: textile cord and steel helix
Applications:
- suction and transfer of hot bitumen
- hot oil and petroleum products
- bitumen industry equipment
- vacuum transfer systems
We can make this hose with crimped fittings in 15–30 minutes – learn more about hose assembly and crimping.
Technical dataPrint
Technical data
| Application | Universal |
| Inner diameter, mm | 102 |
| Outer diameter, mm | 124 |
| Working pressure, bar | 10 |
| Remark | The working pressure at a temperature of +20 °C. The working pressure decreases as the temperature increases. |
| Burst pressure, bar | 40 |
| Min. temperature, C | -20 |
| Max. temperature, C | 185 |
| Bending radius, mm | 600 |
| Vacuum, % | 90 |
| Coil length, m | 40 |
| Weight | 5.29 kg |
