M006709 BITUM-076-10-THO
076x094 bitumen hose BITUME/01KSPL
076x094 BITUME/01KSPL suction hose for hot bitumen – a robust hose designed for the suction and transfer of hot bitumen, oil and petroleum products. Resistant to oil, ozone and weather conditions, with an operating temperature of up to +185°C.
€78.15
/ M
Tax excluded
Delivery within 2-4 business days
The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The 076x094 BITUME/01KSPL suction hose is designed for the suction and transfer of hot bitumen, oils and other high-temperature petroleum products. It is suitable for industrial systems requiring resistance to heat, pressure and demanding environmental conditions.

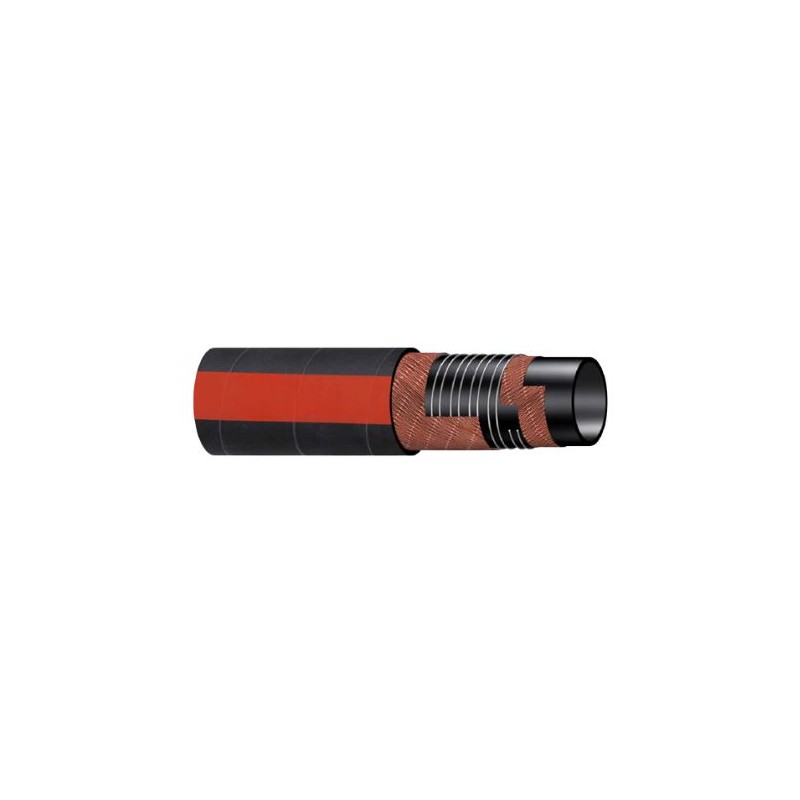

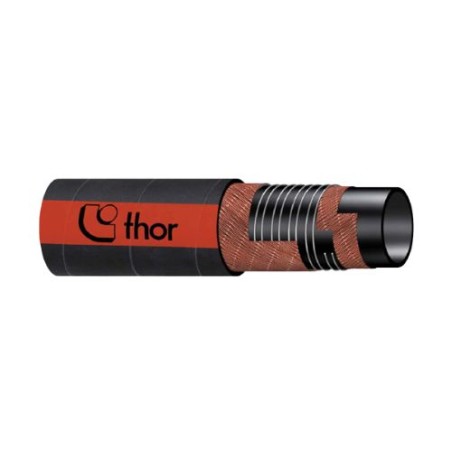

The inner tube is made of smooth black synthetic rubber. Textile reinforcement and a steel helix strengthen the construction, help the hose maintain its shape during suction and enable operation at up to 90% vacuum.
The smooth synthetic rubber outer cover is resistant to oils, ozone and weather conditions. With an operating temperature range from -20°C to +185°C, the hose is suitable for handling hot materials in bitumen and petroleum industry applications.
Key features:
- Inner / outer diameter: 76 / 94 mm
- Working pressure: 10 bar
- Temperature range: -20°C to +185°C
- Vacuum rating: 90%
- Construction: textile reinforcement and steel helix
Applications:
- suction and transfer of hot bitumen
- hot oil and petroleum products
- bitumen and petroleum industry equipment
- vacuum transfer systems
Technical dataPrint
Technical data
| Application | Universal |
| Inner diameter, mm | 76 |
| Outer diameter, mm | 94 |
| Working pressure, bar | 10 |
| Remark | The working pressure at a temperature of +20 °C. The working pressure decreases as the temperature increases. |
| Burst pressure, bar | 40 |
| Min. temperature, C | -20 |
| Max. temperature, C | 185 |
| Bending radius, mm | 450 |
| Vacuum, % | 90 |
| Coil length, m | 40 |
| Weight | 3.60 kg |
076x094 BITUME/01KSPL suction hose for hot bitumen – a robust hose designed for the suction and transfer of hot bitumen, oil and petroleum products. Resistant to oil, ozone and weather conditions, with an operating temperature of up to +185°C.
