M031256

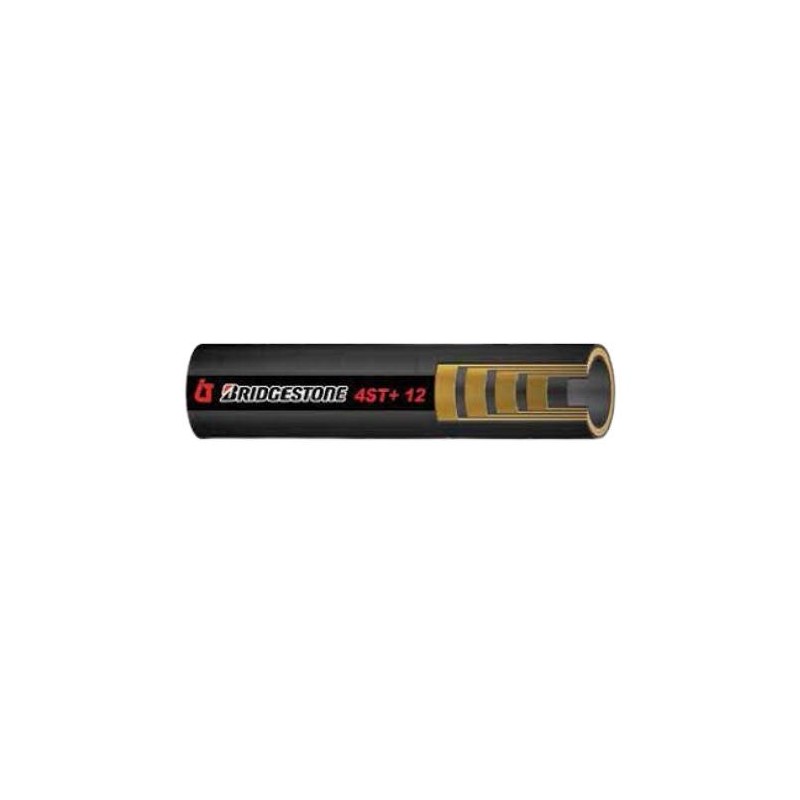

009x020 hydraulic 3/8" hose four braids BRIDGESTONE 4ST+
009×020 hydraulic 3/8" hose four braids BRIDGESTONE 4ST+ – an extra-high-pressure Bridgestone hydraulic hose with four spiral wire layers for demanding hydraulic systems.
€22.96
/ M
Tax excluded
Delivery within 2-4 business days
The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
009×020 hydraulic 3/8" hose four braids BRIDGESTONE 4ST+ is designed for high-pressure hydraulic systems requiring reliable performance under extreme loads.
The inner layer is made of black oil-resistant synthetic rubber and the outer layer of black synthetic rubber. Four high-tensile spiral wire layers provide exceptional strength and durability.
The hose is flexible, making it easier to install even in complex systems. It is suitable for various fluids, including hydraulic oil, fuel and water-based emulsions.
Key features:
- Series: 4ST+
- Inner layer: black, oil-resistant synthetic rubber
- Outer layer: black synthetic rubber
- Reinforcement: four high-tensile spiral wire layers
Application:
- high-pressure hydraulic systems
- industrial equipment
- fuel and oil lines
- water and emulsion transfer
- mobile hydraulics
We can make this hose with crimped fittings in 15–30 minutes – learn more about hose assembly and crimping.
Technical dataPrint
Technical data
| Application | Pressure |
| Inner diameter, mm | 10 |
| Outer diameter, mm | 20 |
| Working pressure, bar | 450 |
| Burst pressure, bar | 1800 |
| Min. temperature, C | -40 |
| Max. temperature, C | 121 |
| Bending radius, mm | 100 |
| Coil length, m | 39 |
| Weight | 1.11 kg |
| Brand | Bridgestone |
