M066722 R1T-10-T-DH

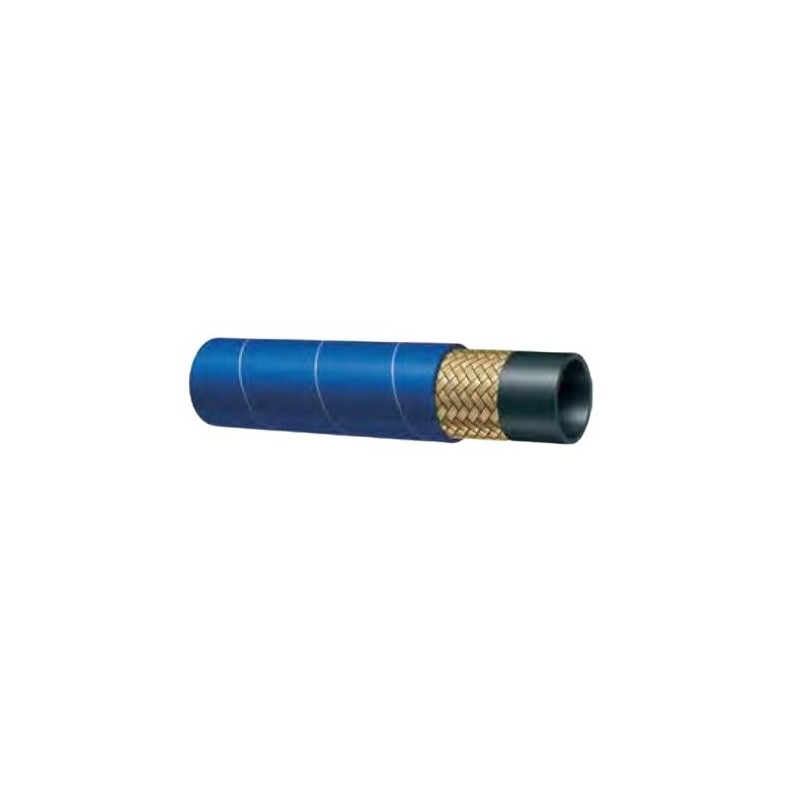

016x024 hydraulic 5/8" hose for high temperature TEMP TECH/HH-COMMANDER 1SN DUNLOP

€16.24 / M
Tax included
M
In stock Availability
Add compare Remove compare
Add in wishlist Added to wishlist
  • In stock
    Alytus
    Naujoji g. 118B, 62175
    Map
In Stock, shipped within 1-2 business days
Description
Description

Inner hose: oil resistant synthetic rubber.

Cover hose: abrasion, ozone and hydrocarbon resistant synthetic rubber.

Reinforcement: one high tensile steel braid (1B).

Temperature range: -40°C to +150°C.

Applications: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water. Specially designed for high temperature applications.

Standard: ISO 1436-1 - SAE 100 R1AT EN 853 1SN.

Made in: Alfagomma (Italy)

Print
Technical dataPrint
Technical data
Application Pressure
Inner diameter, mm 16
Outer diameter, mm 22,7
Working pressure, bar 130
Burst pressure, bar 520
Min. temperature, C 150
Max. temperature, C -40
Bending radius, mm 200
Coil length, m 100
Weight 0.55 kg
