M069188 FUEL-076-10-SEM
076x088 fuel suction hose TM30
076×088 fuel suction hose TM30 – a flexible and versatile Semperit hose designed for the suction and transfer of fuel, diesel, mineral oils, lubricating oils and other technical fluids. Its conductive inner tube and copper wires help dissipate static electricity.
€53.96
/ M
Tax excluded
Delivery within 2-4 business days

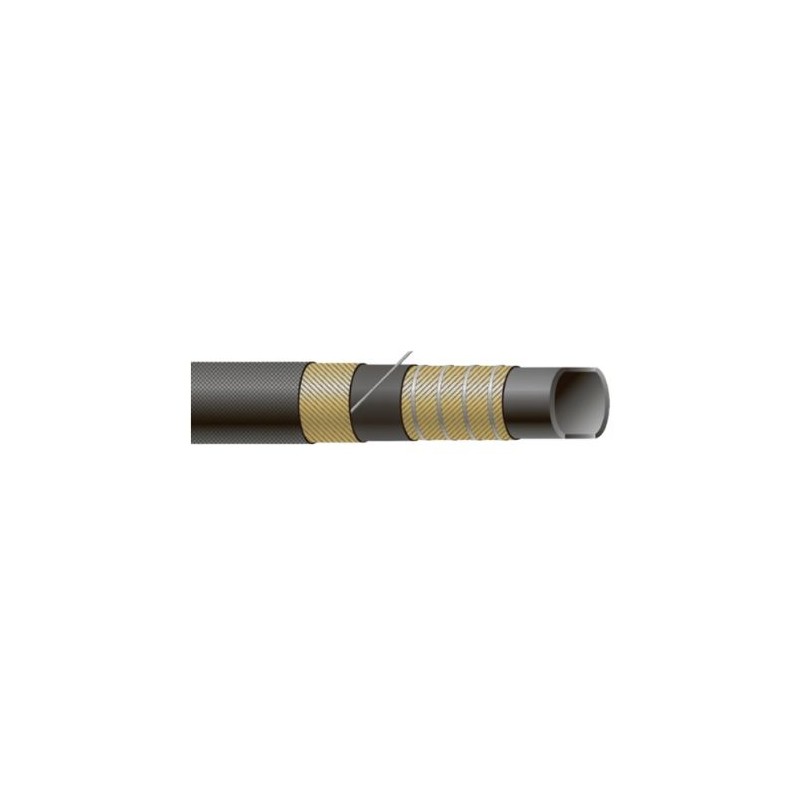

The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The 076×88.2 TM30 suction hose is designed for fuels containing up to 50% aromatic hydrocarbons, as well as diesel fuel, mineral oils and lubricating oils. Its versatile design makes it suitable for hydraulic, agricultural and engine-cooling systems.
The inner tube is made of smooth, electrically conductive NBR rubber. The hose is reinforced with synthetic textile cord, two copper wires and a galvanised steel helix, helping it maintain dimensional stability during suction and vacuum operation.
The fabric-impression SBR/EPDM outer cover is resistant to abrasion, ozone and weather conditions. TM30 remains flexible at temperatures from -40°C to +90°C and is suitable for a wide range of industrial and mobile applications.
Key features:
- Vacuum rating: 90%
Applications:
- fuel, diesel and mineral oils
- hydraulic return lines
- water, seawater and compressed air
- agricultural and industrial equipment
We can make this hose with crimped fittings in 15–30 minutes – learn more about hose assembly and crimping.
Technical dataPrint
Technical data
| Application | Universal |
| Inner diameter, mm | 88,2 |
| Outer diameter, mm | 76,2 |
| Working pressure, bar | 10 |
| Remark | The working pressure at a temperature of +20 °C. The working pressure decreases as the temperature increases. |
| Burst pressure, bar | 30 |
| Min. temperature, C | -40 |
| Max. temperature, C | 90 |
| Bending radius, mm | 350 |
| Vacuum, % | 90 |
| Coil length, m | 40 |
| Weight | 2.56 kg |
| Brand | Semperit |
