M069870 FOOD-038-10-IVG-2
038x049,5 food suction hose Millennium LL
038×049,5 food suction hose Millennium LL – a versatile IVG suction and delivery hose for the food industry: oil, wine, beer, juices, milk and alcohol up to 96%.
€40.93
/ M
Tax excluded
Delivery within 2-4 business days

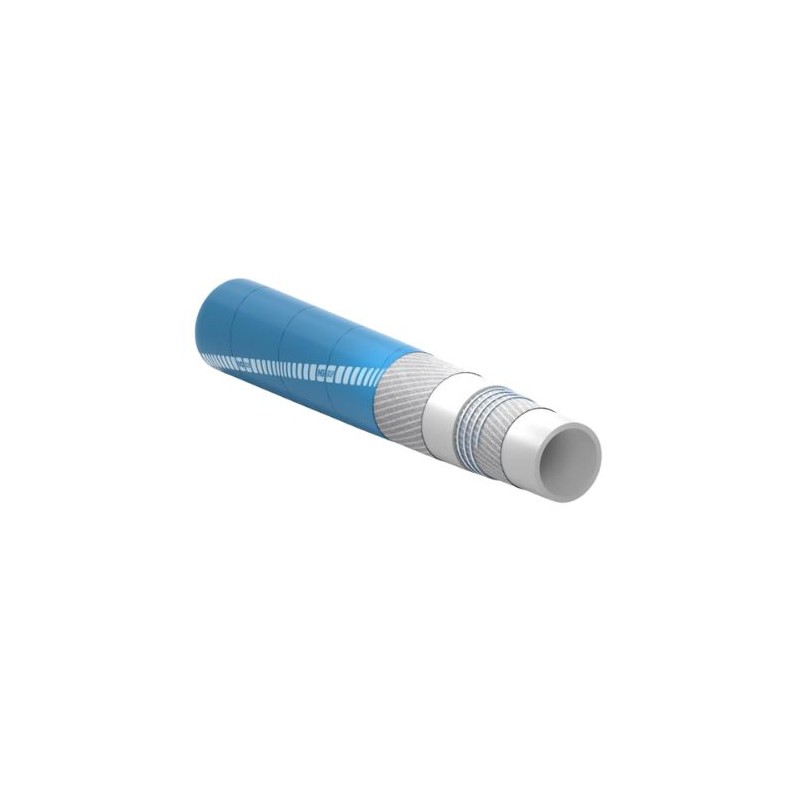

The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
038×049,5 food suction hose Millennium LL is a versatile suction and delivery hose for a wide range of food industry applications. It is suitable for olive oil, wine, beer, juices, milk and liquids containing up to 96% alcohol.
The inner layer is made of white synthetic rubber and the outer layer of blue synthetic rubber. The construction is reinforced with synthetic cord and a steel helix.
The inner layer meets food-contact requirements: EU 1935/2004, EC 2023/2006, FDA 21 CFR 177.2600 and 3-A Sanitary Standard 18-03 (class II).
Key features:
- Inner layer: white synthetic rubber
- Outer layer: blue synthetic rubber
- Reinforcement: synthetic cord and steel helix
- Compliance: EU 1935/2004, EC 2023/2006, FDA 21 CFR 177.2600, 3-A 18-03
- Manufacturer: IVG (Italy)
Application:
- olive oil
- wine and beer
- juices and milk
- liquids containing up to 96% alcohol
We can make this hose with crimped fittings in 15–30 minutes – learn more about hose assembly and crimping.
Technical dataPrint
Technical data
| Application | Universal |
| Outer diameter, mm | 49,5 |
| Internal diameter of the hose, mm | 38 |
| Working pressure, bar | 10 |
| Remark | The working pressure at a temperature of +20 °C. The working pressure decreases as the temperature increases. |
| Burst pressure, bar | 30 |
| Min. temperature, C | -30 |
| Max. temperature, C | 100 |
| Bending radius, mm | 120 |
| Vacuum, % | 90 |
| Coil length, m | 60 |
| Weight | 1.22 kg |
| Brand | IVG |
