M070159 AIR-BR-013-14-COD
012.7x022 air brake hose SAE J 1402 A / BSAU 110 A
€7.47
/ M
Tax excluded
Delivery within 2-4 business days

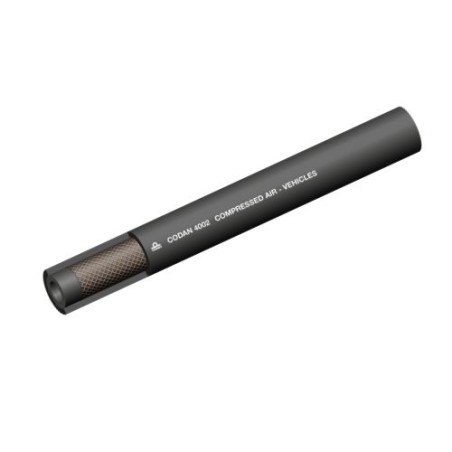

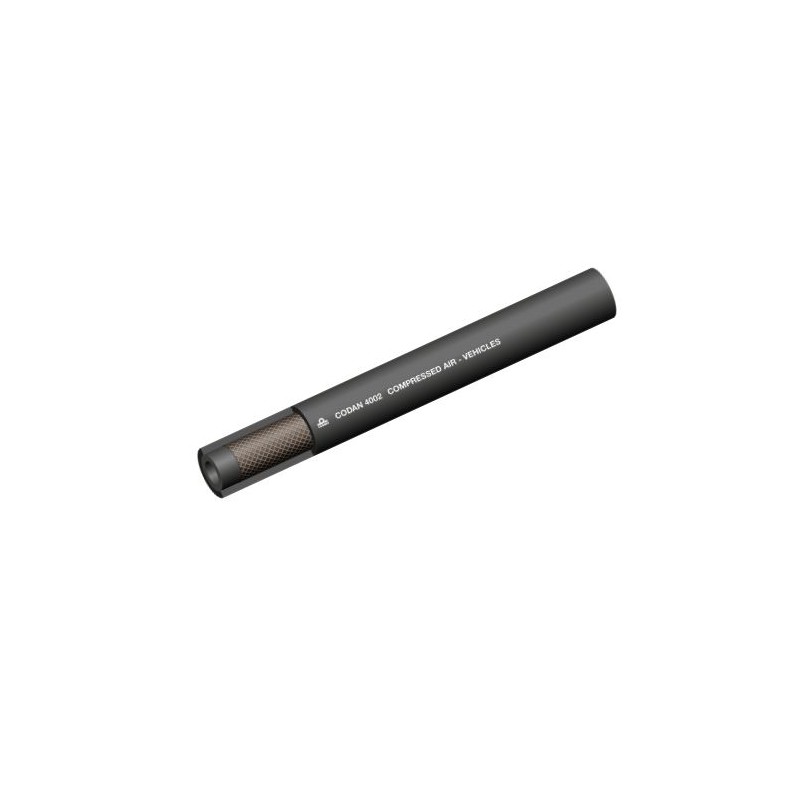

The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
Black, smooth, flexible hose with outer and inner surfaces of oil-resistant
rubber. Also weather and ozone-resistant.
Mainly for use as flexible connection between lorries and trailers, but also
suitable elsewhere on heavy goods vehicles.
Normally installed using specially designed claw couplings
Application: Compressed air - vehicles
Working temp.: -40°C to 93°C
Working pressure: 14 bar
Inside compound: CR
Inside colour: Black
Outside compound: CR
Outside colour: Black
Reinforcement: Polyester
Standard length: 50 metres
Standards: SAE J 1402 A / BSAU 110 A
Technical dataPrint
Technical data
| Application | Pressure |
| Inner diameter, mm | 12,7 |
| Outer diameter, mm | 22 |
| Working pressure, bar | 14 |
| Remark | The working pressure at a temperature of +20 °C. The working pressure decreases as the temperature increases. |
| Burst pressure, bar | 63 |
| Min. temperature, C | -40 |
| Max. temperature, C | 93 |
| Bending radius, mm | 125 |
| Coil length, m | 50 |
| Weight | 0.37 kg |
