M073106 RITE-19X13-20-MAR

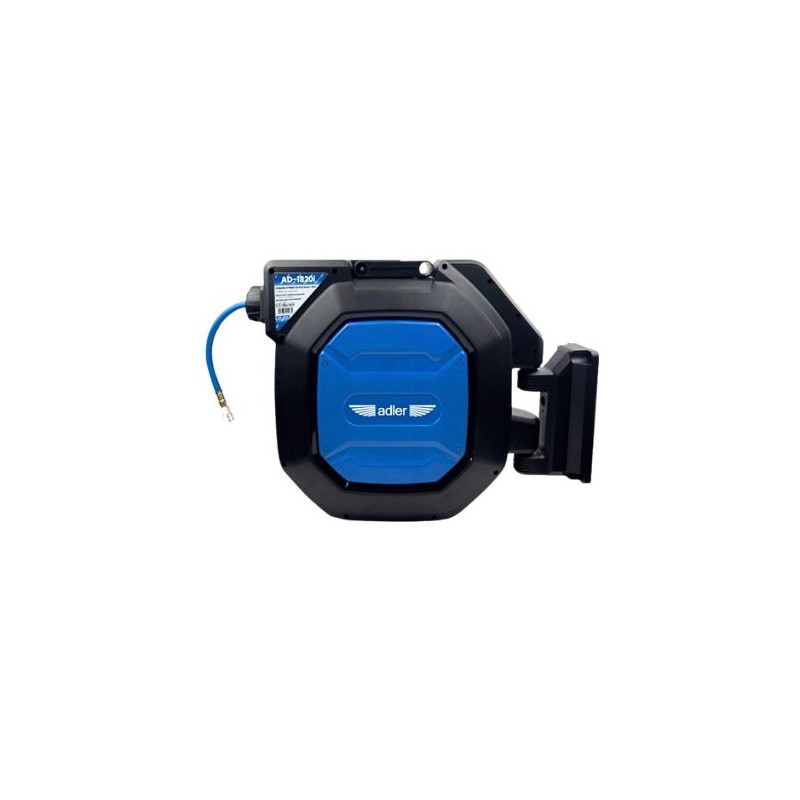

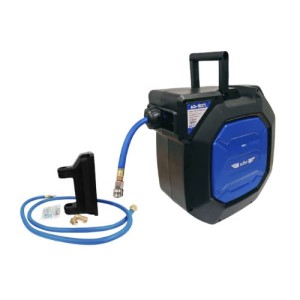

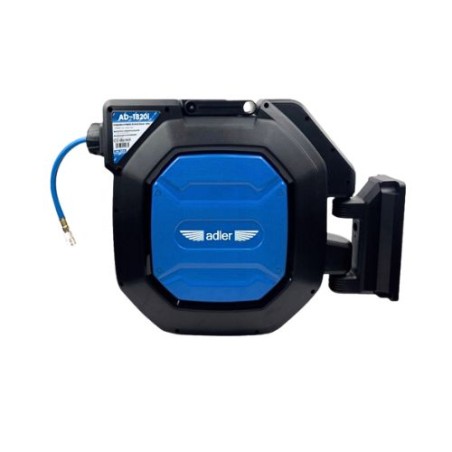

automatic reel for 18,8X12,5 mm, L 20 m (with hose)
The professional pneumatic reel AD-1820i 18.8x12.5-20m is a top-quality product, manufactured with high precision and using the finest materials.
€185.00
/ VNT
Tax excluded
Delivery within 2-4 business days
The product image is for illustrative purposes only and may not be an accurate representation of the product.
Description
Description
The reel is equipped with extra-long hoses (AD-1820i - 20m, AD-1827i - 27m), allowing for operation in the most remote locations.
The new-generation hybrid hoses, manufactured using a special PVC and rubber blend, offer high pressure resistance, are extremely flexible, and are comfortable to use, even in sub-zero temperatures.
The excellent seal, high-quality spring, and additional spring adjustment mechanism guarantee long-lasting operation in harsh industrial environments. The mechanism used in the AD-1820i and AD-1827i reels allows for the hose to be stopped at any time. The hose reel reels operate smoothly and in a more controlled manner.
Technical specifications:
Hose material: Hybrid (PVC + Rubber)
Hose outer diameter: 18.8 mm
Hose inner diameter: 12.5 mm
Wall thickness: 3.15 mm
Hose length: 20 m
Operating pressure: 10 bar
Operating temperature: -20°C ~ +50°C
Housing: Plastic housing
Intended use: Compressed air
Dimensions: 58.5 x 26.5 x 50 cm
Net weight: 15 kg
Technical dataPrint
Technical data
| Internal diameter of the hose, mm | 12,5 |
| Working pressure, bar | 10 |
| Coil length, m | 20 |
| Weight | 16.00 kg |
| Brand | Adler |
